Sub (UUV)
Overview

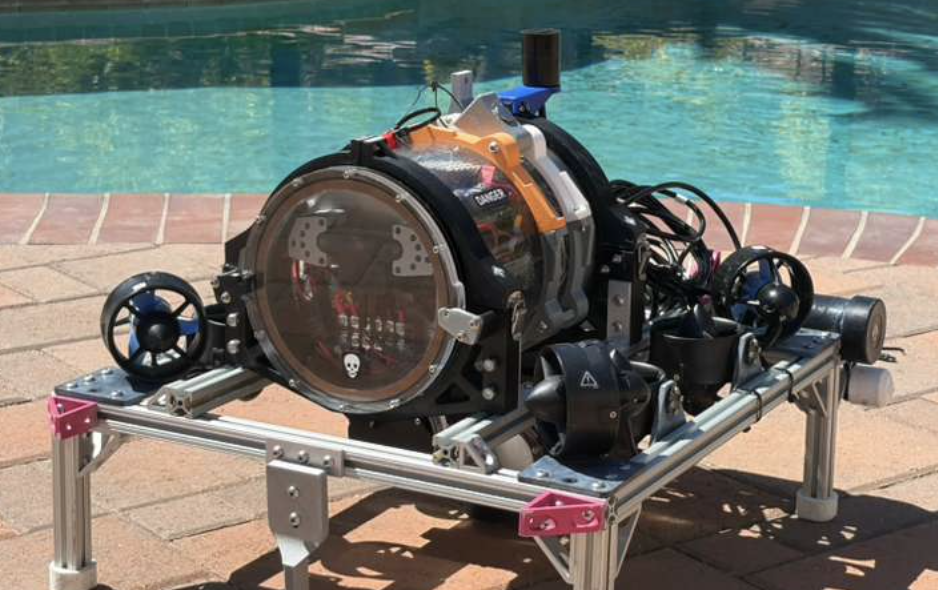

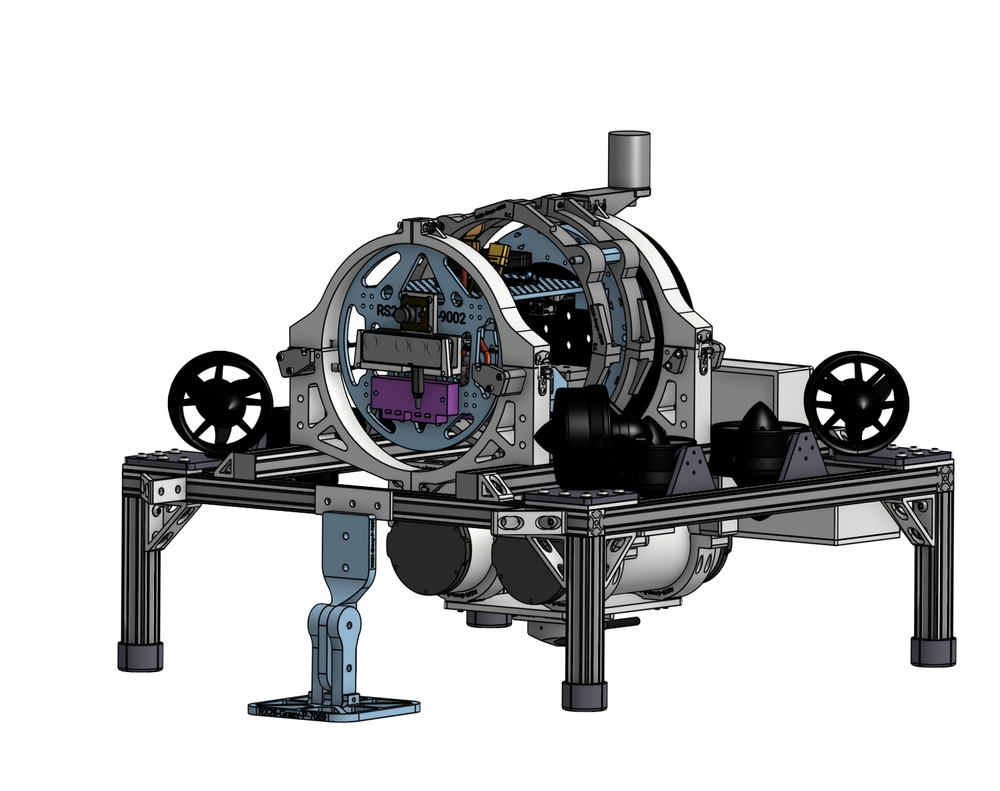

Our sub, Graey, features an 8-thruster holonomic layout using 80/20 aluminum extrusion frames. We’ve learned that simplicity and modularity are the best practices. We have aligned our hull with the center of mass, and used PVC pipes to adjust bouyancy. Additionally, we use interconnect and a double layer of O-rings for reliable waterproofing.
Græy
Dimensions
22”w x 22”l x 16”h
Endurance
Normal usage: 1 hour runtime
Main Processor
Jetson Nano
Propulsion System
T200 thruster (x8)
Full throttle FWD/REV thrust @ nominal (16V) 11.6 / 9.0 lb f
Weight
With 2 Batteries: 51.08 lbs
Degrees of Freedom
3 translational (x,y,z)
3 rotational (roll, pitch, yaw)
Power System
Lithium-ion battery 14.8V, 15.6Ah(2x)
Wireless Communications
Succorfish Delphis modem
Wifi
Sensors
Blue Robotics low-light camera (x2)
Oak-D Wide
USB-low light
Ping Echosounder sonar (x2)
Navigation System
VectorNav VN-100 IMU/AHRS
Pixhawk orange cube
Waterlinked DVL
Software Architecture
Robot Operating System (ROS)
